cosmodrome rocketry

1:6 AEROBEE HI

Aerobee Hi
Kit Features
General Kit Statistics Recommended Motors
Balsa nose cones (2)
Two color self-adhesive decals
24" and 18" rip-stop nylon parachutes
F through H power
Through-the-wall fins
Motor retension on both stages
1:6 scale
Length = 61.3" (with booster and payload)
Diameter = 2.63" and 1.635"
Weight = 27oz
Single stage
F40W-4(R)
F50T-6
G40W-7
G33J-7(R)
G64W-7(R)
G80T-7
Booster
G80-4
Upper stage
F40W-7(R)
F50T-6
G33J-7(R)
G40W-10
G80T-10

Aerobee Hi launching on a G64

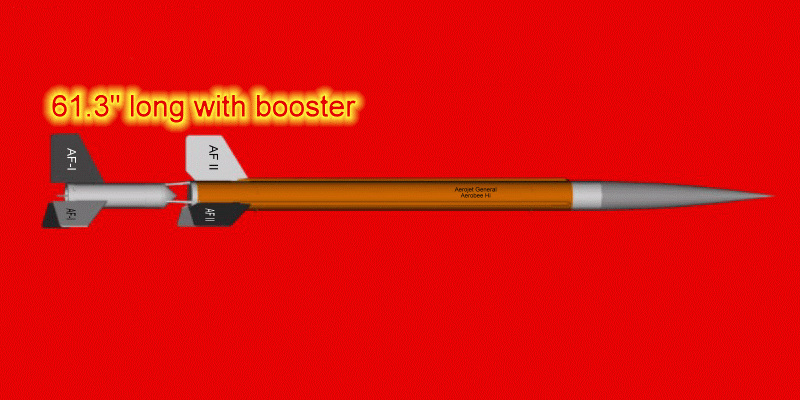

Animated gif of Aerobee Hi

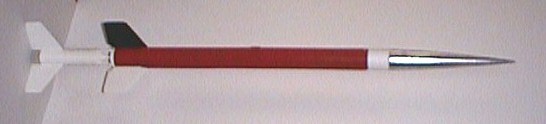

Overall pic of Aerobee Hi
This picture is of the complete Aerobee Hi with payload section (NRL-42 version). It may also be configured in the USAF-79 configuration (no payload section). Decals for both configurations are provided.

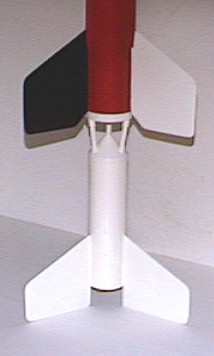

Aerobee Hi booster
This picture is an enlargement of the booster section and tail section of the sustainer. Both sections contain 29mm motor mounts. This kit can be flown in either single or two stage configuration. Staging electronics are supplied by the builder.
